18*7" Edge-Lit Panel for Konami Belly Glass No. 70-36599-00

Customized large LED backlight panel for all Konami Belly Glass currently edge-Lit with Cold-Cathode Lamps.

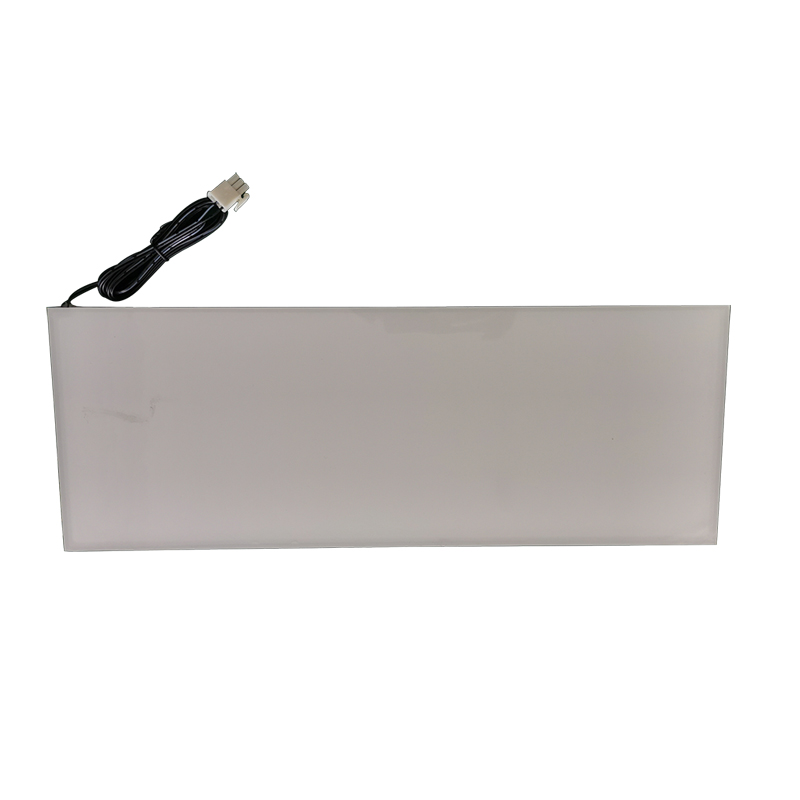

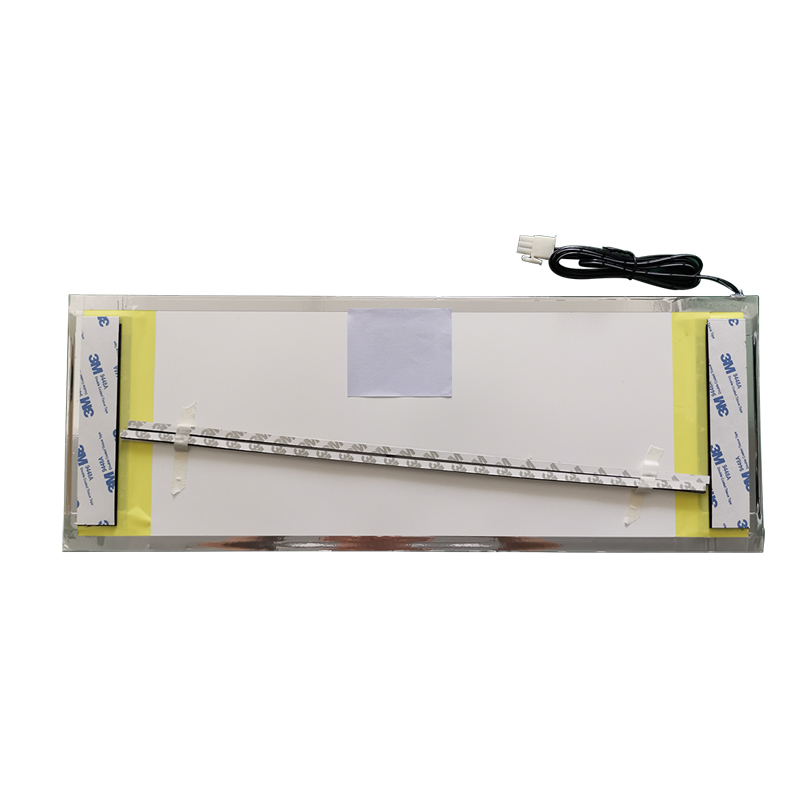

17" LED edge-lit Panel

Part No.: 70-36595-00


SPECIFICATIONS


  • Outline Dimension:

456.7mm*167.8mm*8mm

  • Voltage:

24V
  • Currency:

440mA
  • Beam Angle:

180°
  • Operation Temp.:

-10° ~ 70°C
  • Storage Temp.:

-20° ~ 80°C



FEATURES


  • Replacement for all Konami Belly Glass currently edge-Lit with Cold-Cathode Lamps.

  • Powered by 12 volts directly, so there is NO inverter, ballast or adapter needed.

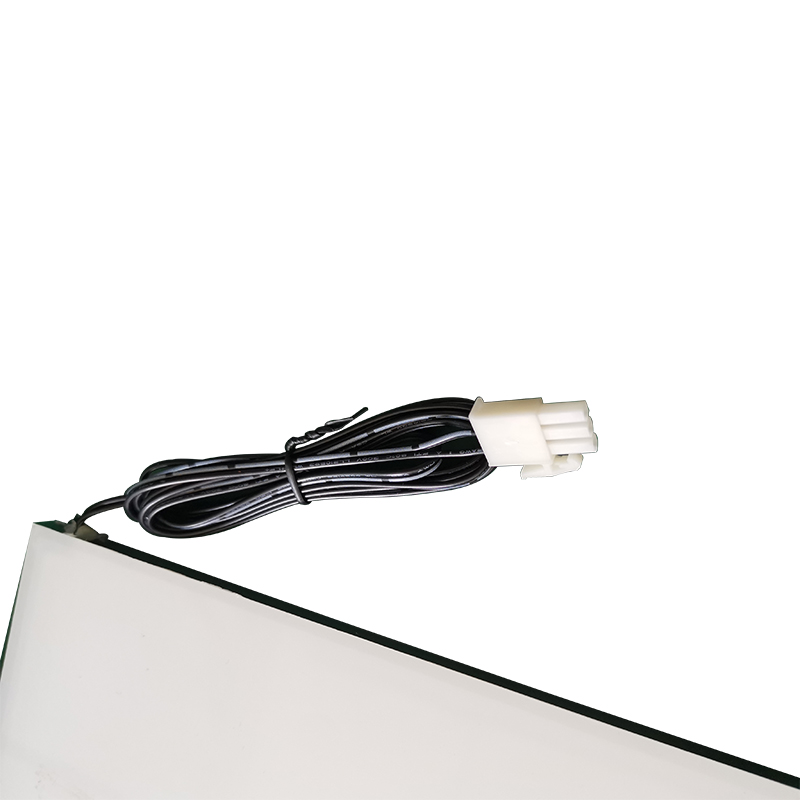

  • Just plug the power cord directly into the existing Molex connector that currently provides 12 volts of power to the CCFL inverter.

  • LED's will not break when the Drop Crews let the door drop and then slam it closed


APPLICATION


This LED edge-lit plate can be used to replace the part on Konami Belly Glass.

It is large and bright with long use life.
