Professional LCD Module and LED Backlight Panel manufacturer

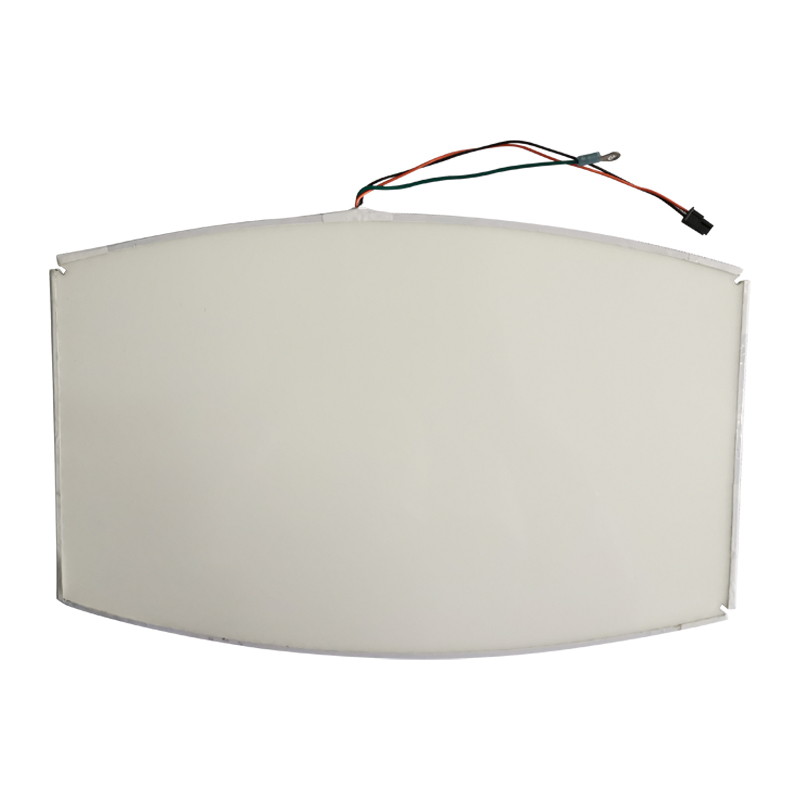

RS886-A02-00 353mm*231.8mm shielding LED edge-lit Plate No. 58101600

Customized LED backlight panel for LCD, entertainments monitors, entertainments machine indicators with shielding function.

353mm*231.8mm LED edge-lit Plate with Shielding Function

Part No.: RS886 or 58101600


SPECIFICATIONS


  • Outline Dimension:

353mm*231.8mm*3mm

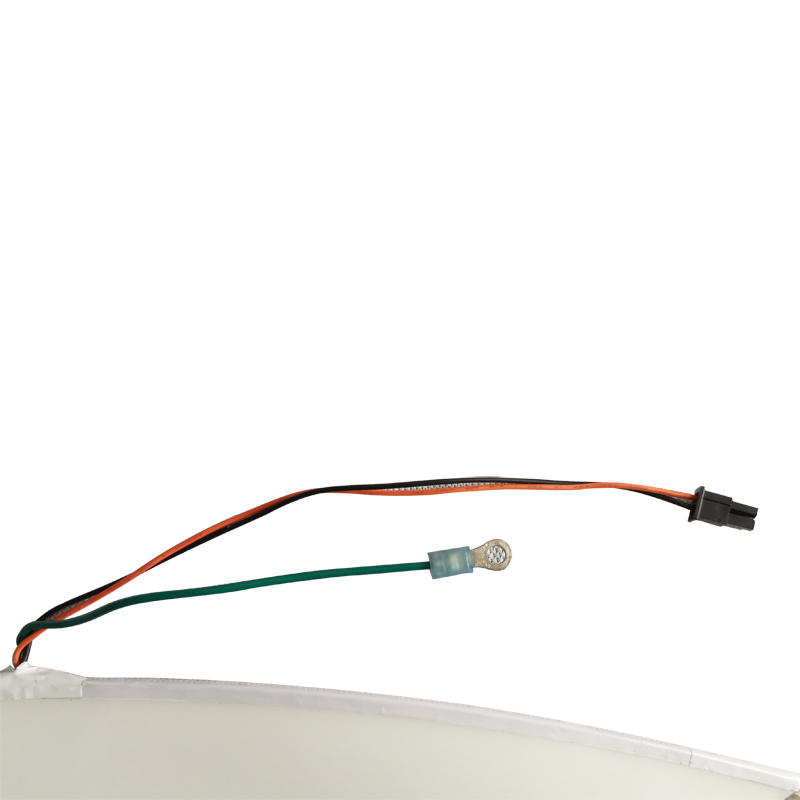

  • Connector:

MOLEX-4300001
  • Voltage:

24V
  • Currency:

180mA
  • Shielding Wire:

TE-51864-1
  • Beam Angle:

180°
  • Operation Temp.:

 0° ~ 65°C
  • Storage Temp.:

-5° ~ 70°C



FEATURES


  • Low current operation

  • Excellent grilles appearance, no more stikcer is needed.

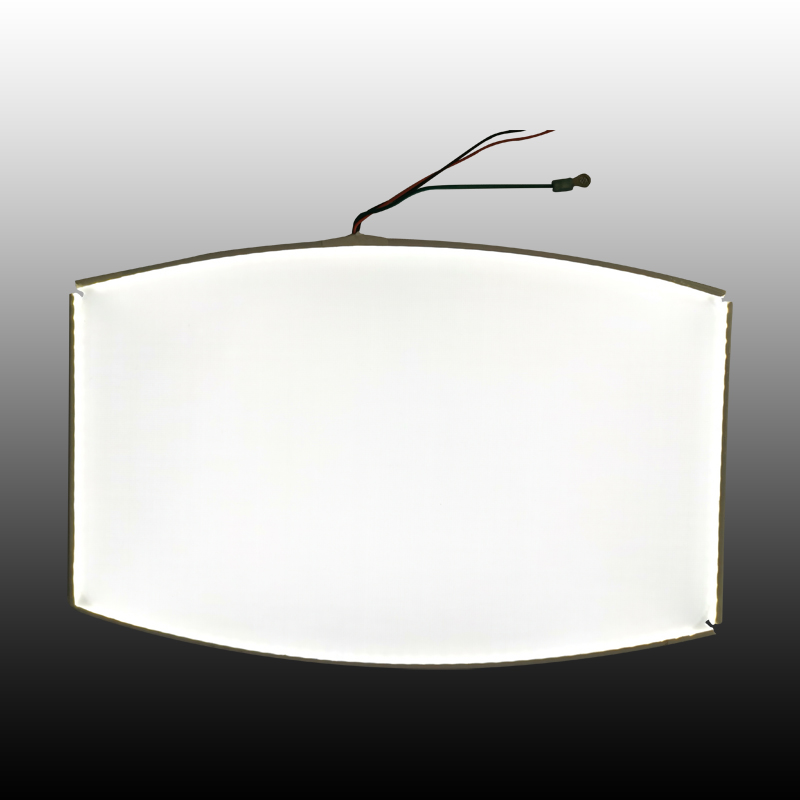

  • Large area, uniform, bright light emitting surface.

  • RoHS Compliant



APPLICATION


This large-size edge-lit LED plate with shielding function, is to replace the old part on entertainments machine directly with symple method - to plug in.
