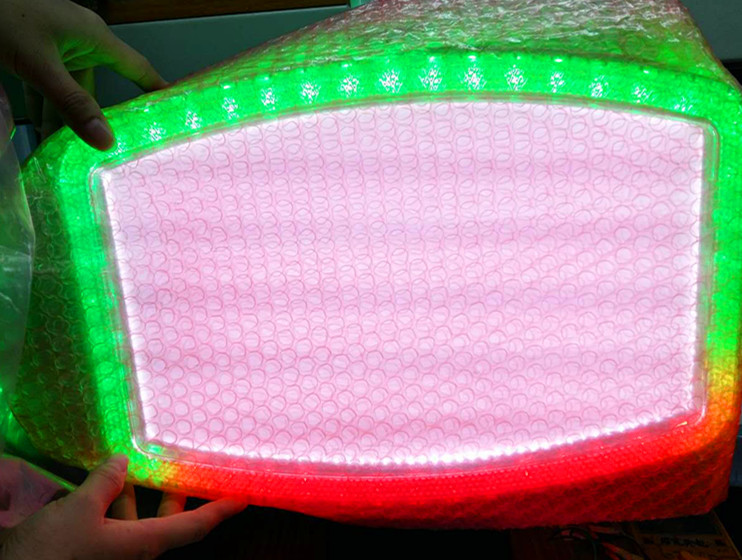

Entertainments Machine Part RS886 LED edge-lit panel

14-10-2015

Part No.: RS886-A02-00

Product Code: 58101600

Application: this LED edge-lit plate is to install on entertainments machine as below:


Backlight panel manufacturer



Features:

1. The illuminance could be 3000mcd/m², the diffusion film on its top makes light spread evenly without dazzling. The polycarbonate sheet to make this LED edge-lit plate is stable in form and anti aging.

2. Low energy consumption, say with voltage 24V ad 180mA currency, it is very energy saving, only 1/4 of normal compact fluorescent lamp (CFL). This LED edge-lit panel is also safe at operation temperature with around 50℃ constantly without overheat risk.

3. LED edge-lit panel is with long use life. Because it is made with LED chips, it can light for more than 50,000 hours and keeps 85% luminance after 30,000 hours' use.

4. This LED plate is very easy to replace the old part with. While is it with MOLEX-4300001 connector, all one needs to do when installing is merely to plug it on.




ANKA Electronics provide custom LED plate, please let us know your requirements, we will make every detail satisfied.
