4.3" a-Si TFT LCD MODULE

This 4.3" a-Si TFT LCD MODULE is very popular in many types of electronics products to provide screen replacement.

Send Email

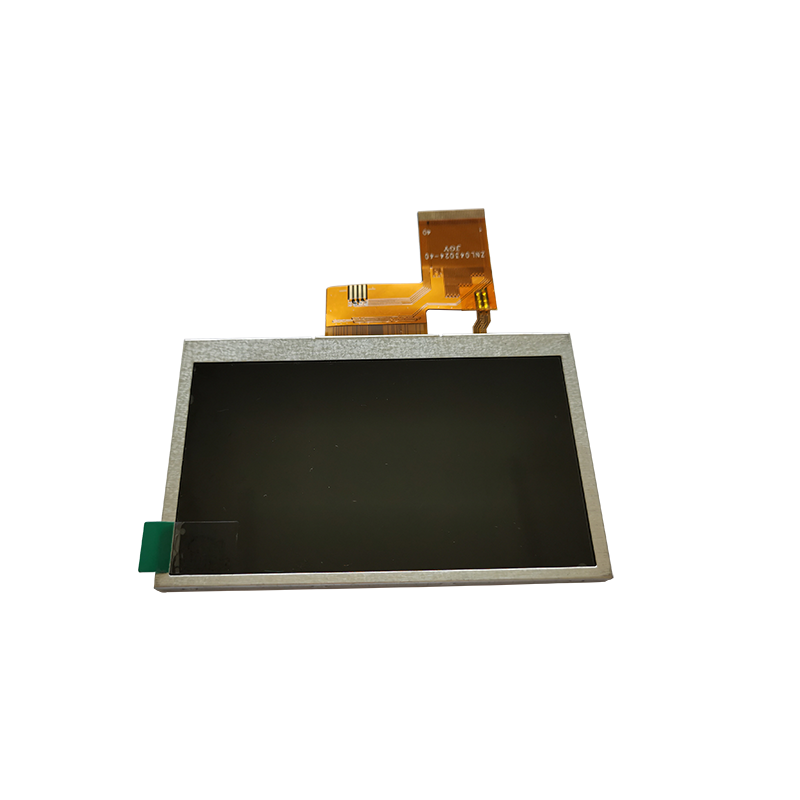

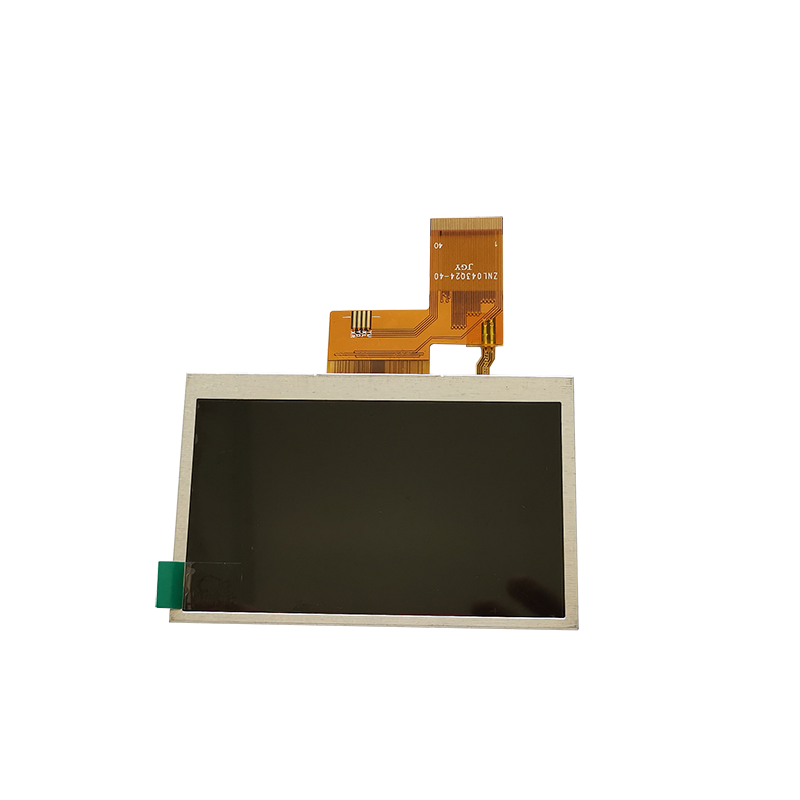

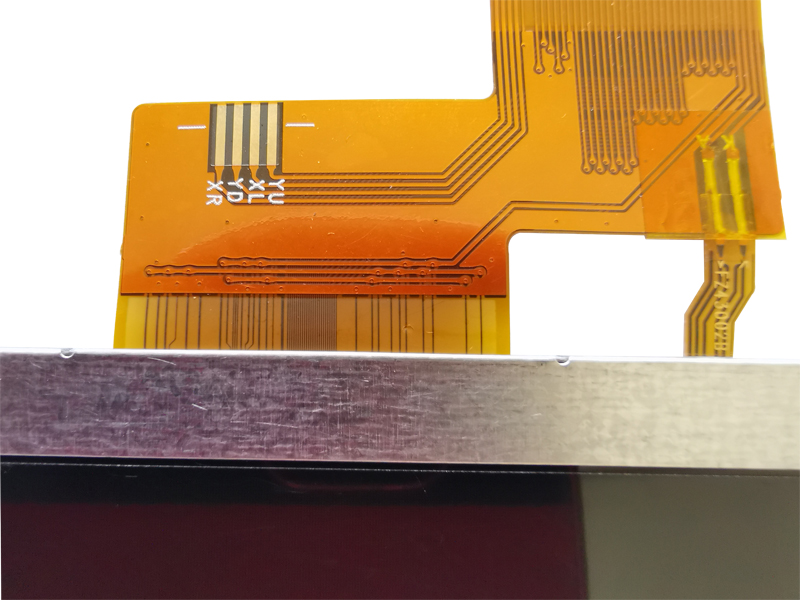

4.3" a-Si TFT LCD MODULE

Part No.: T043480272-A7TMN-001


SPECIFICATIONS

  • Display Size：

4.3"

  • LCD type：

TN TFT

  • Transmissive:

Normally white

  • Resolution:

480 RGB x 272

  • View Direction:

12 o'clock

  • Gray Scale Inversion

    Direction:

6 o'clock


  • Module Outline:

105.5(H) x 67.2 (V) x 2.9 (T)

  • Active Area:

95.04(H) x 53.856(V)

  • Pixel Pich:

198(H) x 198(V)

  • Pixel Arrangement:

RGB Stripe

  • Polarizer Surface

    Treatment:

Normal


  • Display Colors:

16M

  • Interface:

24-bit RGB interface

  • Driver IC:

ST7282

  • Touch Panel

Without

  • Operating Temp.:

-20~70°C

  • Storage Temp.:

-30~80°C

  • Weight:

41g


FEATURES

  • Presice in design.

  • High light transparent.

  • Stable in shape, easy installation.

  • Large area, different shapes could be customized.

  • RoHS Compliant



APPLICATION

Installed in electronics appliances.
